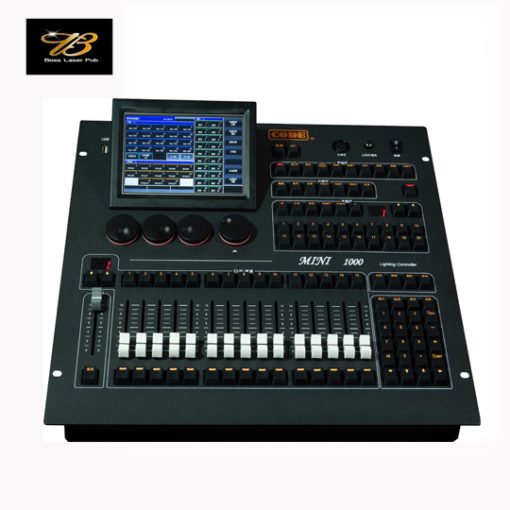

· Total 1024 channels with 2 individual optical isolated DMX outputs and Net-work interface.
· 7″ TFT-LCD touch screen for operating.
· 3 colour backlit keyboard.
· Offers 4 optical backlit encoders.
· Up to 1000 playbacks, executed by 15 playback faders×40 pages and 20 playback keys×20 pages.
· Maximum 400 Units for patching all kinds of Fixtures.
· Up to 400 Groups.
· Up to 400 Presets.
· Up to 400 Macro Shows.
· Up to 400 User-Defined Shape Effects.
· Shortcut area provides a quick way for selecting Fixtures, Groups, Presets or Custom Shape Effects.
· Color-mix system provides a color palette for users to control fixtures with RGB or CMY channels conveniently.
· Shape Generator provides various effects which can be saved as custom Effects.
· Provides different priority levels for playbacks.
· Provide over 8000 Libraries in system. Enable users to edit System Library or create custom Library. R20 library files can be loaded in as the custom library.
· Provide MIDI in and out interfaces to connect and work with other consoles.
· Freely download Upgrade Version and System Library.
· An internal electronic disk allows user to backup show data.
· USB interface allows users to backup shows in external disk.
· Power supply: AC100-240V, 50-60Hz.
· Size: 482mm×445mm×180mm.
· Net weight: 10kg approx.
